Icron USB 3-2-1Raven 3104点到点延长器，使用CAT 6a/7可达100米,可实现高达5Gbps传输速率。ExtremeUSB-C™技术支持USB 3.1, 2.0 and 1.1设备。使之兼容USB 3.1会议摄像头、闪存驱动器、硬盘、键盘、鼠标、交互式白板、触摸屏、USB到视频转换器、音频设备、docking stations、或任何其他USB 3, 2和1设备。
Overview

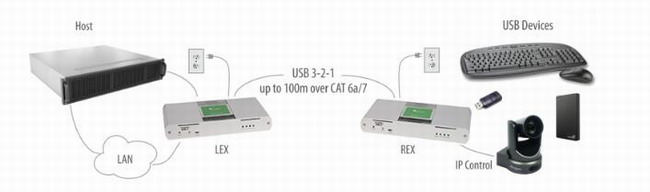

The Icron USB 3-2-1 Raven™ 3104 is the world’s first and only USB 3.1 extender allowing users to extend all USB 3.1 Gen 1 (5 Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. This is an ideal USB 3.1 extender solution for conference rooms using USB 3.1 conference cameras. The Raven has been successfully tested with most major USB 3.1 conference cameras in conjunction with major web conferencing applications.
This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.
Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.
Features
- USB 3.1 Gen 1 data rate up to 5 Gbps
- Integrated four port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
- Up to 1.2A (6W) per USB port
- 100/1000 Mbps Ethernet channel; LAN pass-through
- Single cable, CAT 6a/7 up to 100m
- Point-to-point connection
- FCC and CE (Class B) compliance
- Two year warranty
- ExtremeUSB-C™ suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
Specifications
RANGE
- Direct connect up to 100m (328 ft) over CAT 6a/7 cable
SPEEDS
- USB 3.1: up to 5 Gbps
- USB 2.0: up to 480 Mbps
- USB 1.1: up to 12 Mbps
LEX (Local Extender)
- 1x USB 3.1 Gen 1 Type B Receptacle
- 1x RJ45 Ethernet 100/1000 Port
- 1x RJ45 Ethernet Link Port
- 24V 1A DC Locking Jack
- Enclosure Material: Silver anodized aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
- 920g (2.03 lbs.)
- Mounting: 4 surface mounting holes or optional mounting kit available
REX (Remote Extender)
- 4x USB 3.1 Gen 1 Type A Receptacles
- 1x RJ45 Ethernet 100/1000 Port
- 1x RJ45 Ethernet Link Port
- 24V 2.71A DC Locking Jack
- Available Current: up to 1.2A (6W) per USB port
- Enclosure Material: Silver anodized aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
- 990g (2.18 lbs.)
- Mounting: 4 surface mounting holes or optional mounting kit available
ENVIRONMENTAL
- Operating Temperature: 0C to 50C (32F to 122F)
- Storage Temperature: -20C to 70C (-4F to 158F)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2, REACH, Conflict Minerals
SUPPORT
- Warranty: 2-year
In the Box
The Raven 3104 extender system includes:
- Local Extender (LEX)
- Remote Extender (REX)
- USB 3.1 Gen 1 Cable
- LEX 24V DC 1A International Power Adapter
- REX 24V DC 2.71A International Power Adapter
- 2 x Country Specific Power Cords
- Quick Start Guide
- Two year warranty
Applications
-
-
- Remote Storage
- Security & Monitoring
- Video Matrix Systems
- Conferencing Cameras
- Medical Device Connectivity
-
