USB2.0网线传输器Ranger2304

: Ranger2304 4端口USB2.0延长器的解决方案，是由两个独立的单元，本地（LEX）和远程（REX）组成。最远可达100米/330ft可实现高达480Mbps传输。支持连接更多数量的USB设备（支持连接高达31的设备和集线器）。2304提供了一个集成的四端口USB 2.0集线器，每个端口提供600mA远程供电。每个端口都支持USB 1.1，USB2.0和USB3.0的设备类型（高达480Mbps）。

Overview

The Ranger 2304 provides true USB 2.0 extension at up to 480Mbps over CAT 5e/6/7 cabling, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2304 is compatible with all leading operating systems, and supports all USB 3.0, 2.0 and 1.1 peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated CAT 5e/6/7 connection. An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

Features

Extends USB 3,0, 2.0, and 1.1 (both low-speed and full-speed) devices
Operates with USB 3.0, 2.0, and 1.1 hosts
Supports all USB devices up to 480Mbps
Uses a standard solid core Cat 5e cable for easy installation
Number of devices can be increased using additional USB hubs
FCC Class B
Rugged metal enclosure
ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, and Linux®

Specifications

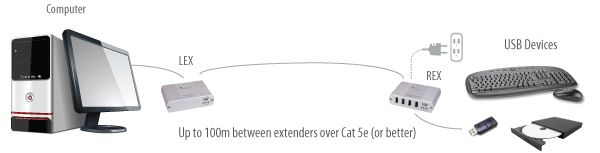

Direct connect range: up to 100m (330 ft) over CAT 5e/6/7 (or better) cable
USB Device Support:
- Traffic Types: All USB 2.0 and 1.1
- Device Types: All USB 3.0, 2.0 and 1.1 devices

LEX unit USB connector: 1 x USB Type B
LEX unit Link connector: 1 x RJ45
REX unit Link connector: 1 x RJ45
REX unit USB connector: 4 x USB Type A
Maximum USB devices supported: 31 devices and hubs
Power supply: 100-240V AC input, 1A 24V DC Output
Current available to USB at REX: 4 x 600mA
LEX and REX unit dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)
Operating temperature range: 0°C to 50°C (32°F to 122°F)
Total system shipping weight: 870 grams (1.9 lbs.)
EMC: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
Warranty: 2 years

In the Box

The USB 2.0 Ranger 2304 system includes:

Local Extender (LEX)
Remote Extender (REX)
2 meter USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, Australia/NZ or Japan)
Two year warranty
