USB2.0光端机Ranger2344

USB2.0光端机Ranger2344

Ranger 2344 USB 2.0高速延伸器,是由两个独立的单元,本地(LEX)和远程(REX)组成。可实现使用单模光纤传输高达480Mbps,最远可达10公里(6.2英里)。REX提供4 USB端口及500MA电源。可以连接高速的网络摄像头,硬盘驱动器,打印机,扫描仪,音响设备,触摸屏,数字相机和游戏控制器。集成的四端口集线器。


Overview

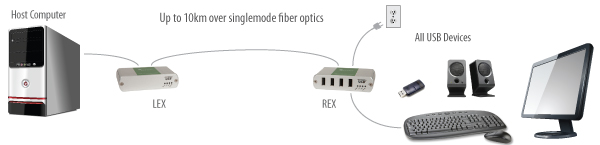

The USB 2.0 Ranger® 2344 allows users to extend USB 2.0/1.1 connections up to 10km (6.2 miles) using singlemode fiber optic cable.

This 4-port USB 2.0 singlemode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, and Linux®.

Additionally, this ExtremeUSB® based USB 2.0 singlemode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Up to 10km (6.2 miles) extension using singlemode fiber
  • Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
  • Electrical isolation
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™ and Linux®

Specifications

RANGE

  • Direct connect up to 10km (6.2 miles) over singlemode fiber optic cable

SPEEDS

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

LEX (Local Extender)

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x SFP Duplex LC
  • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
  • Mounting: 4 surface mounting holes or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

REX (Remote Extender)

  • USB Connector: 4 x USB Type A Receptacles
  • Link Connector:  1 x SFP Duplex LC
  • Available Current: up to 1 Amp to each USB port; 2.5 Amps total shared
  • Power Supply: 100-240V AC Input, 24V 1A DC Output
  • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
  • Mounting: 4 surface mounting holes or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year

In the Box

The USB 2.0 Ranger 2344 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • SFP singlmode transceiver modules
  • 2 meter USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

  •
    •
      • Industrial Control
      • KVM Extension
      • Digital Signage
      • Home Network Integration
      • Medical Device Connectivity
      • Security: web camera, access control
