USB3.0铜缆线Spectra3001

USB3.0铜缆线Spectra3001

Spectra 3001-15是一款坚固耐用的有源15米USB3.0延长线缆。是一个工业级单端口高速USB3.0短距离解决方案。Spectra 3001-15电缆支持高达5Gbps的吞吐量。接收端USB 3.0端口提供900mA电流。通过线缆供电,无需外部电源。该电缆是非常适合AIA USB3 Vision摄像头的应用。请注意,不兼容USB 2.0、USB1.1设备


Overview

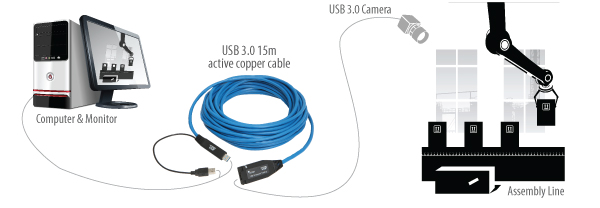

USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. The cable is warranted for 2 years from the date of purchase. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

Features

  • USB 3.0 extension for 15m
  • Supports USB 3.0 throughputs up to 5Gbps
  • Bus powered from host PC, no external power supply needed
  • USB 3.0 device port provides 5V, 900mA power
  • Second USB power connector for use if additional power is required
  • Locking USB connector
  • Slots on device port for convenient cable tie mounting
  • Rugged grade cabling
  • Status LED at device port with power, enumeration and over-current indication
  • Works with AIA USB3 Vision™ compliant devices
  • 2 year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, Mac OS X®, and Linux®

Specifications

RANGE

  • Active Copper Cable: 15m (49.21 ft)

SPEEDS

  • USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)

PHYSICAL

  • USB Connector on Device Side: 1 x USB 3.0 Type A Locking Receptacle
  • USB Connectors on Host Side: 1 x USB 3.0 Type A Host Connector; and
    1 x USB Type A Power Connector (required for devices drawing more than 2.5W)
  • Cable Diameter: 6.9mm (0.27″)
  • Jacket Material: PVC
  • Bend Radius: 28mm (1.10″)
  • Mounting Slots on Device Side: Slots for Cable Tie

POWER

  • Power Source: Bus power
  • Available Current: 5V, 900mA

ENVIRONMENTAL

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 170°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2 (CE)
  • Flammability: VW-1 (UL 1581)
  • Machine Vision: Works with AIA USB3 Vision™ compliant devices

SUPPORT

  • Warranty: 2 years

In the Box

The USB 3.0 Spectra 3001-15 active extender cable includes:

  • 15 meter USB 3.0 Spectra 3001-15 Active Cable
  • Cable Tie
  • Quick Start Guide
  • Two year warranty

Applications

      • Machine Vision (works with USB3 Vision compliant cameras and devices)
      • Security
      • Storage
      • Large file transfers

产品关键词:USB3.0延长线 USB3.0铜缆线 USB延长线 Spectra3001 ICRON
