KVM光端机KVMX-100-TR

: KVMX-100-TR多业务KVM光端机通过光纤传输传输DVI，USB HID，RS232和音频信号。支持双向立体声音频，无损图像传输。支持两路DVI视频传输分辨率为WUXGA（1920x1200）60Hz，自动读取EDID，支持远端控制功能，最大传输距离单模光纤1公里多模光纤300米。

New Dual-head DVI optical KVM extender, KVMX-100-TR is designed to extend Dual DVI outputs with keyboard, mouse and bi-directional audio. But the key feature of 2:1 KVM switch function inside KVMX-100-TR enables users to selectone PC between two (2) PCs as a host.
KVMX-100-TR transmits DVI, USB HID, RS232 and bi-directional stereo audiosignal up to 1.0km (3280feet) over two (2) duplex LC single-mode fibers or 300m (985feet) over two (2) duplex LC multi-mode fibers.
Designed for high resolution performance, it guarantees lossless image quality and no frame dropping to deliver perfect graphic data transmission up to WUXGA (1,920x1,200) at60Hz.
It provides Auto-mix EDID programing feature that reads EDID information from both local and remote side displays and then determines the lowest resolution of them. It makes the installation of KVMX-100-TR easy and flexible at any variable resolutions.

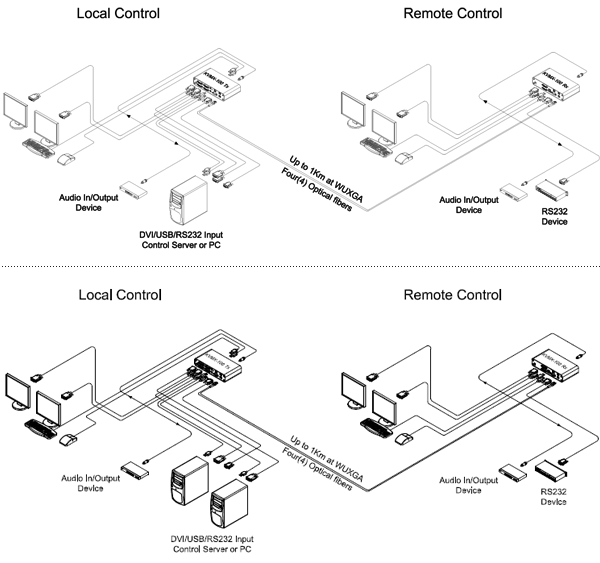

Optionally, we could include convenient remote console switch for selecting local control or remote control.

• Switches and Controls Two (2) PCs –2:1 KVM switch function
• Supports two (2) single-link DVI displays up to WUXGA (1,920x1,200) resolution at 60Hz.
• Transmits DVI, USB HID, RS232 and audio signal up to 1km (3280feet) over two (2) duplex LC optical fibers.
• Operates with both single and multi-mode optical fibers.
- Up to 1.0km (3280feet)with two (2) duplexLC single-mode fibers.
- Up to 300m (985feet)with two (2) duplexLC multi-mode fibers.
• Offers DVI, USB Loop through ports for Local two (2) displays and Keyboard / Mouse.
• Supports bi-directional stereo audio.
• Lossless Image Quality, with no Frame Dropping.
• USB HID ports for keyboard and mouse
• Provides Serial Control Data: RS232C through 9 pin D-sub connector.
• Auto-mix EDID feature
• Offers remote console switch (option)
• 19” 1RU mountingrack, mounting bracket (option)
• Power supplying: +12V, 3A power adapter
• Certifies FCC and CE standards
• Input power:+12V 3A
• Size (WDH): 216mm x 112mm x 44mm
