4K单芯DP光纤延长器DPFX-300-TR

4K单芯DP光纤延长器DPFX-300-TR

DP光纤延长器DPFX-300-TR,DP4K光端机通过单芯多模光纤传输DP1.2视频信号,DP4K光纤延长器分辨率 4096x2160@60Hz,传输距离200米。


OPTICS Latest DisplayPort 1.2



DPFX-300-TR, extends DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one(1) LC multi-mode fiber(OM3).

Leading-edge technology of Opticis allows long distance transmission of 4K signal without any video/audio degradation.



DPFX-300-TR is designed compact enough to be fitted into various installation environments. It gives slim, light, easy installation with perfect electrical isolation, but without electrical hazard and interference.

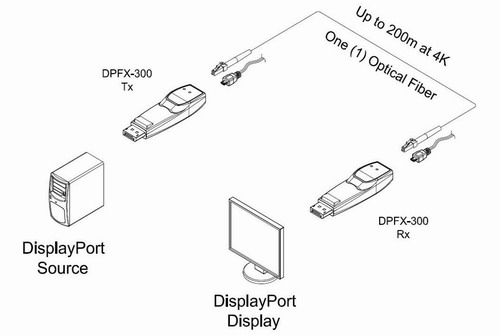

Between Transmitter (DPFX-300-Tx) and receiver (DPFX-300-Rx), pure fiber connection by single LC fiber connector gives clean, secure and easy installation.



DPFX-300-TR can be operated by USB power without external DC power adapter with plugging micro USB(DPFX-300 module side) – USB (source/display devices side) cable which is supplied in the shipping group.





• Supports DisplayPort 1.2 standards

• Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)

• Transmits DisplayPort 1.2 data up to 200m (656feet) over one (1) LC multi-mode fiber (OM3)

• Offers total data rate 21.6 Gbps (5.4Gbps per lane)

• Supports Dual-mode DP (DP++)

• Supports Auxiliary/I²C channel over fiber

• Supports Multi-Stream Transport

• Provides compact design that allows direct connection to DisplayPort source/display

• Plug & Play

• Auto power switching

• Data security with negligible EMI emission

• Certifies FCC and CE standards for EMI/RFI emission

产品关键词:DP4K 4KDP DP光纤延长器 DP光端机 DP单芯 4K光端机
