Optical DVI Extender Duplex Fiber Detachable Module M1-201DA-TR

Optical DVI Extender Duplex Fiber Detachable Module M1-201DA-TR

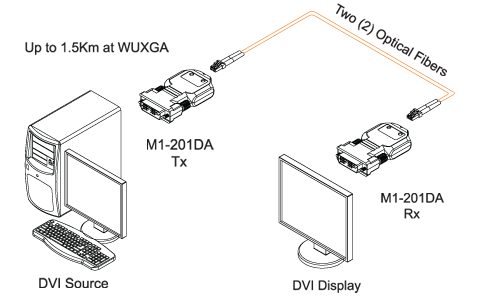

M1-201DA-TR is capable of driving uncompressed WUXGA (1920x1200) 60Hz DVI signal up to 1,500m (4920feet) over a duplex LC single-mode or 500m (1640feet) over a duplex LC multi-mode fiber. The key features of M1-201DA-TR is, by using an optical passive spl


Key Features:

  • Extends all VESA resolution up to WUXGA (1,920 X 1,200) 60Hz DVI data up to 1,500 meters (4,920 feet).
  • Applicable to both single-mode and multi-mode fibers.
    1. Up to 500m with duplex LC multi-mode fibers.
    2. Up to 1,500m with duplex LC single-mode fibers.
  • Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection.
  • The modules are compact enough to directly plug to graphic sources and displays by adopting DVI-plugs.
  • Includes two (2) +5V DC power adapters for the transmitter and receiver, one for each end.
  • Certifies FCC and CE standards for EMI/RFI emission.
  • Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present.


Applications:

  • Digital FPD, PDP and projector installation in conference rooms, auditoriums and for kiosk systems.
  • Digital display system integration for medical, military, aerospace, factory automation, and traffic control platforms.
  • Individual and Multi Screen video signboards for large scale information displays, indoors, outdoors, stadiums.
  • Home Theatre Systems.


Keywords:M1-201DA-TR Opticis DVI-Extender-Duplex-Fiber
